HIGH CONSISTENCY AND PERFORMANCE FOR THE MOST DEMANDING BARISTAS

Considered by many baristas as one of the best coffee grinders in the world, the IZAGA has been designed for a very high work rate while always maintaining grinding consistency.

HIGH CONSISTENCY AND PERFORMANCE FOR THE MOST DEMANDING BARISTAS

Considered by many baristas as one of the best coffee grinders in the world, the IZAGA has been designed for a very high work rate while always maintaining grinding consistency.

Innovation at the Service of the Hospitality Industry

All of Markibar’s R&D comes together in the high-performance Izaga professional coffee grinder, designed to help you consistently prepare the best espresso.

Izaga is our flagship coffee grinder for a simple reason: it keeps up with the fast-paced demands of any establishment without compromising the quality of the grinding. What sets it apart is its precision, speed, and consistency in preparing each dose of coffee.

That’s why it’s possibly the best time-controlled coffee grinder in the world. Are you ready to try it for yourself?

All of Markibar’s R&D comes together in the high-performance Izaga professional coffee grinder, designed to help you consistently prepare the best espresso.

Izaga is our flagship coffee grinder for a simple reason: it keeps up with the fast-paced demands of any establishment without compromising the quality of the grinding. What sets it apart is its precision, speed, and consistency in preparing each dose of coffee.

That’s why it’s possibly the best time-controlled coffee grinder in the world. Are you ready to try it for yourself?

Innovation at the Service of the Barista

The IZAGA coffee grinder is equipped with the most advanced technology to ensure high performance.

In addition to the thermal separation between the motor and the grinding chamber, the IZAGA family features a heat extraction system that helps maintain a low temperature in the grinding chamber, preventing the quality of the coffee from deteriorating.

The balanced distribution of microfines in the portafilter ensures uniform extraction of the entire coffee puck, maximizing the coffee’s potential.

It also has a bidirectional grind setting lock system, which helps maintain precise control over the grind adjustment, preventing errors due to improper handling.

To adapt to demand, IZAGA grinders allow for quick switching between PRE DOSE and ON DEMAND systems via an intuitive display and keypad.

Innovative Technology, Variety of Colors, and Custom Versions

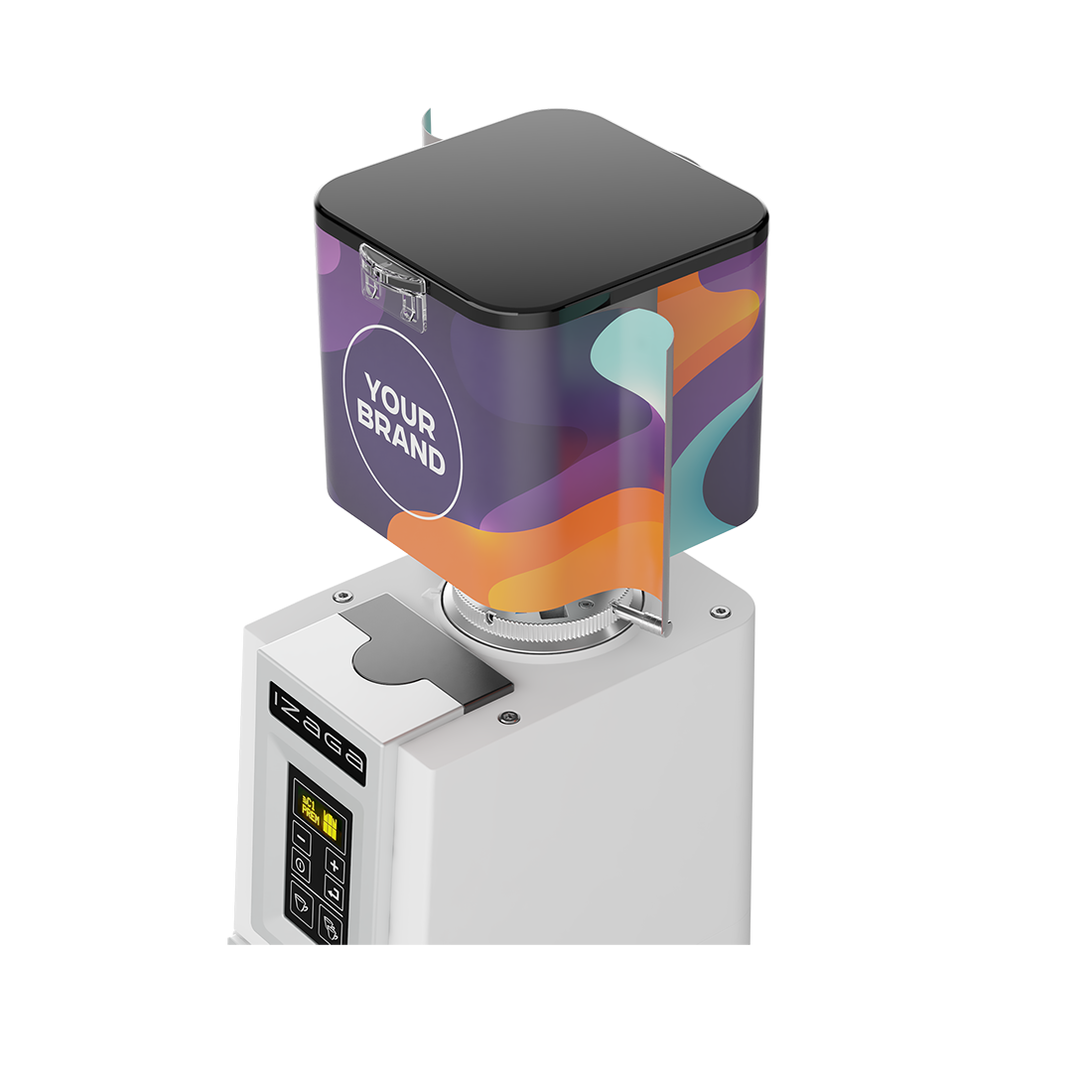

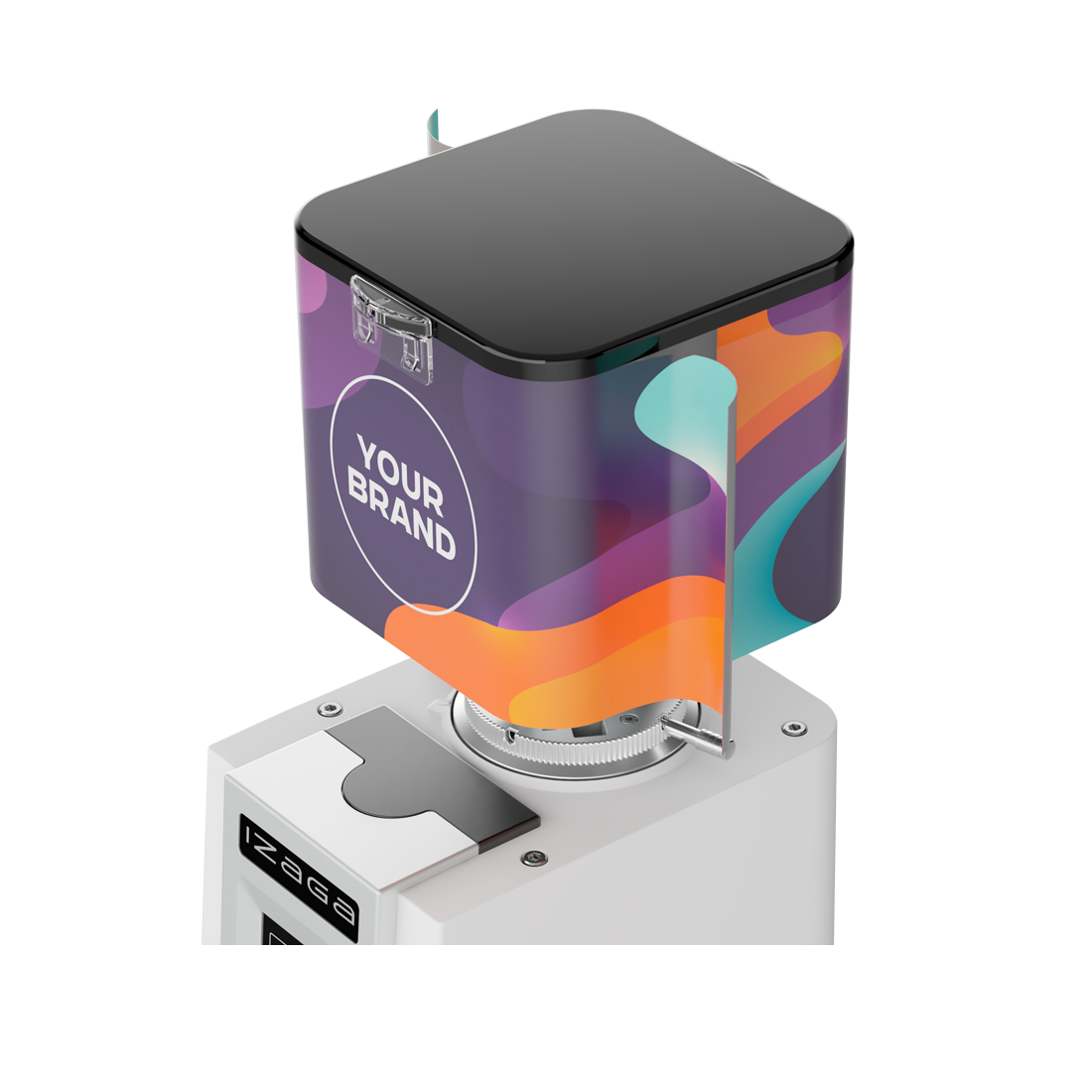

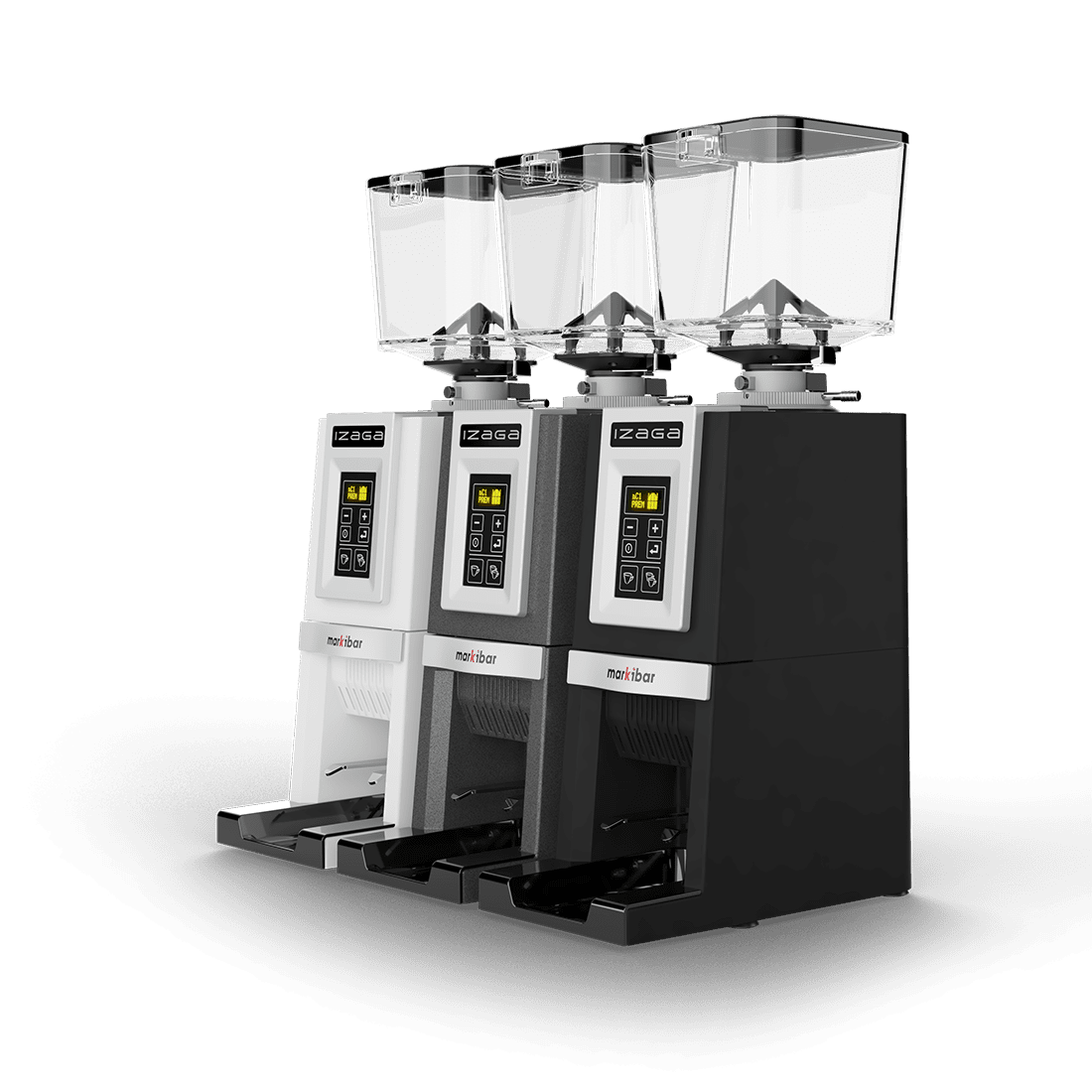

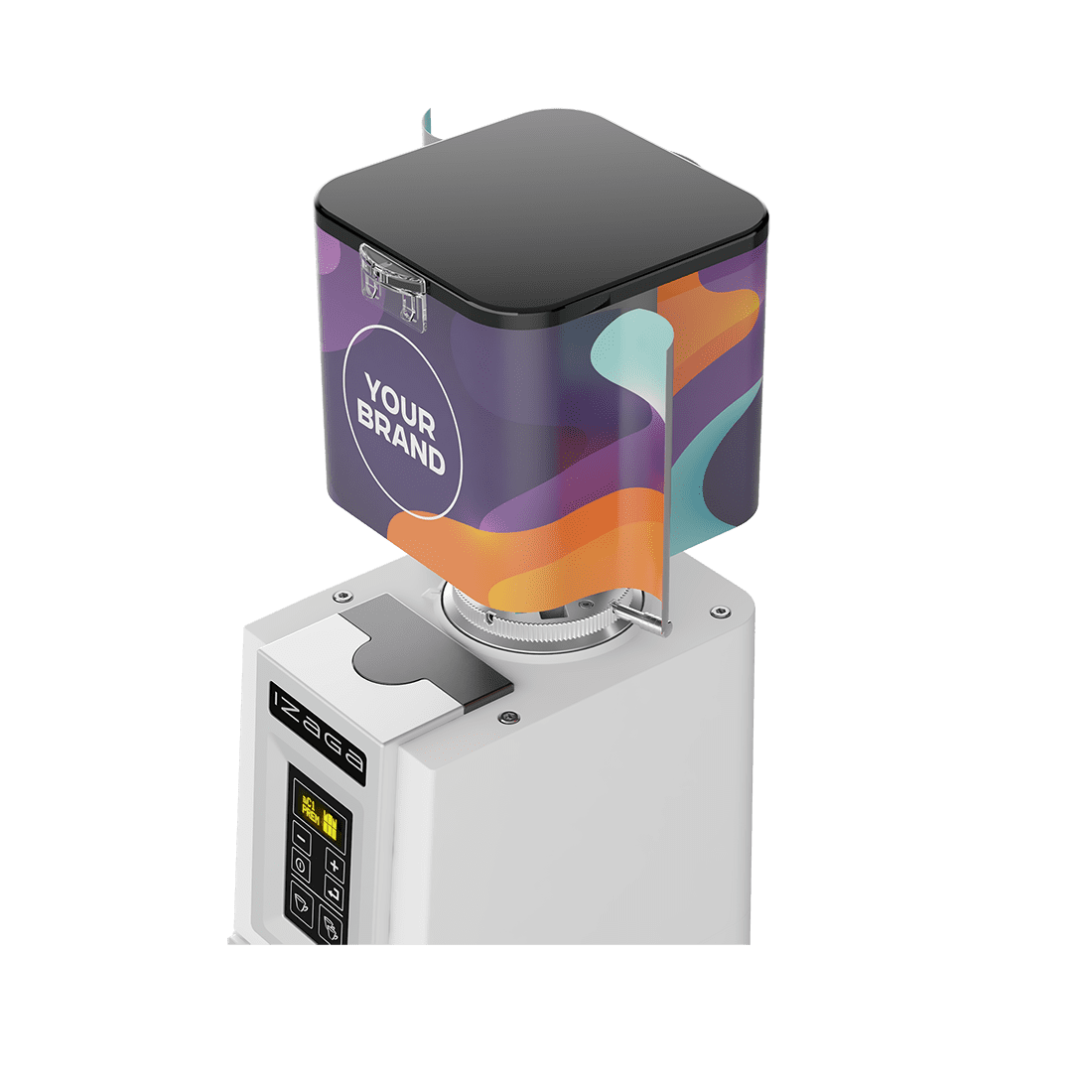

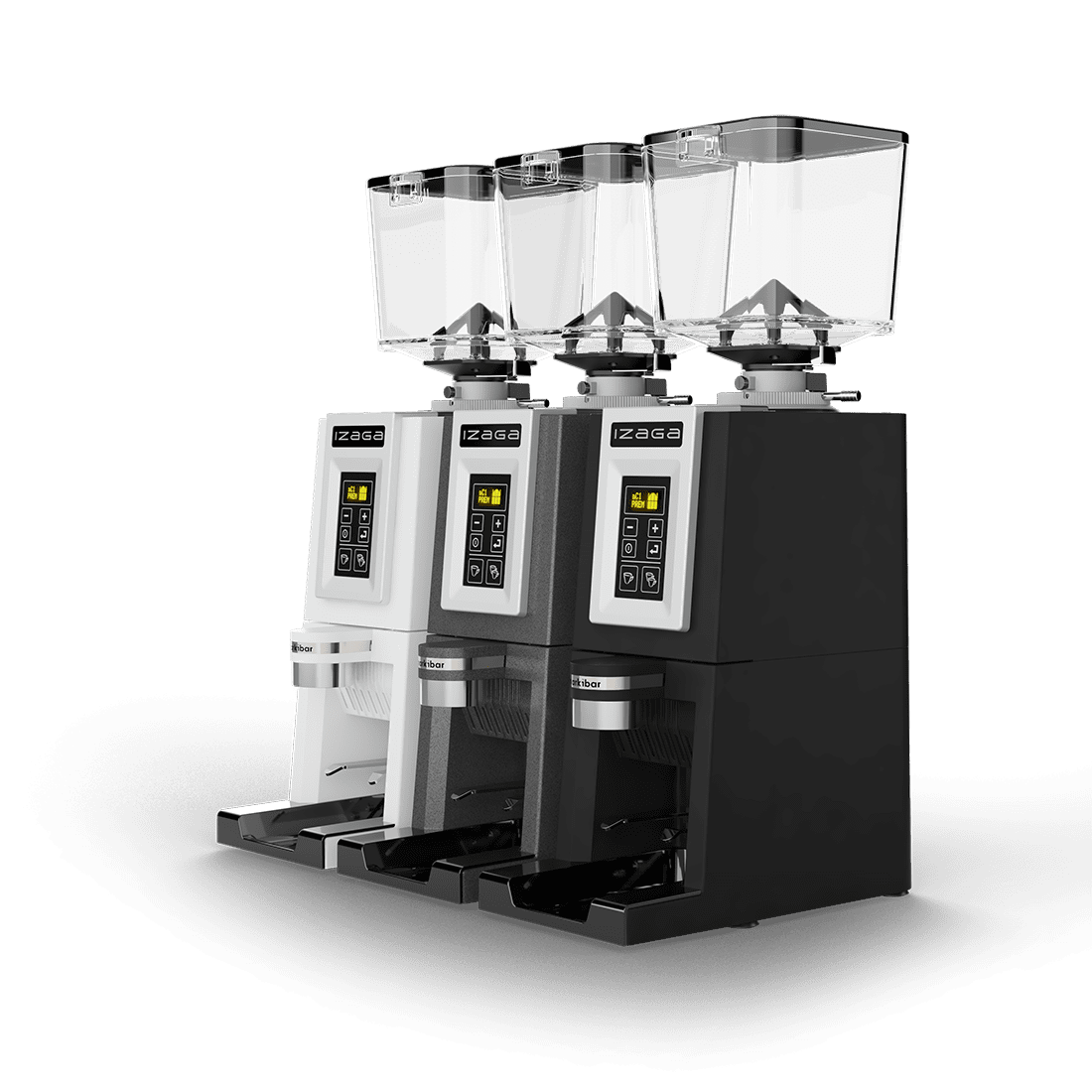

The IZAGA professional grinder is available in white, gray, and black. Two different user interface options are available: a touchscreen (IZAGA TFT, at an additional cost) or an alphanumeric display with a membrane keypad (IZAGA KEY). Both versions come with the automatic portafilter detector and can be equipped with or without a tamper. Additionally, for a minimum order of grinders, the hopper can be customized to display your brand.

Technical Specifications

Height

640 mm - 25,19 inches

Burrs

Ø 64 mm. Planas


Width

180 mm - 7,08 inches

Hopper capacity

1,5 kg / 3,3 lb


Depth

352 mm - 13,85 inches

Production per hour

8 kg/h


Connected load

220-240V 50Hz / 220-240V 60 Hz / 110-120V 60 Hz

Grinder capacity

4 g/s


Power

525 W

Single dose

5 - 18 g


Grinding burrs speed

1350 rpm

Double dose

5 - 28 g


Net weight

16 kg


Height

640 mm - 25,19 inches

Burrs

Ø 64 mm. Planas


Width

180 mm - 7,08 inches

Hopper capacity

1,5 kg / 3,3 lb


Depth

352 mm - 13,85 inches

Production per hour

8 kg/h


Connected load

220-240V 50Hz220-240V 60 Hz110-120V 60 Hz

Grinder capacity

4 g/s


Power

525 W

Single dose

5 - 18 g


Grinding burrs speed

1350 rpm

Double dose

5 - 28 g


Net weight

16 kg


Heigh

640 mm - 25,19 inches


Width

180 mm - 7,08 inches


Depth

352 mm - 13,85 inches


Connected load

220-240V 50Hz220-240V 60 Hz110-120V 60 Hz


Power

525 W


Grinding burrs speed

1350 rpm


Net weight

16 kg


Burrs

Ø 64 mm. Planas


Hopper capacity

1,5 kg / 3,3 lb


Production per hour

8 kg/h


Grinder capacity

4 g/s


Single dose

5 - 18 g


Double dose

5 - 28 g


Métodos de trabajo

Preguntas frecuentes

All MARKIBAR grinder models feature a coffee dosing system that allows two different doses of coffee to be prepared in advance. They can operate in On Demand mode for maximum grinding freshness or Pre Dose mode for maximum workflow speed.

Our grinders offer multiple systems to request each dose:
• Automatic portafilter detection
• Button selection
• Last dose button
• Double-click system (see details in the instruction manual)

El molino IZAGA controls the coffee dose using a timed system, allowing two different doses to be programmed independently.

The IZAGA W series, however, features a gravimetric dosing system controlled by an electronic scale.

All our models store the number of single and double coffee servings since the last reset. Additionally, the IZAGA model features total consumption tracking from the moment of installation.

The ORHI model is designed for hospitality professionals looking to optimize productivity, simplify The IZAGA model is designed for professional environments where performance, speed, and quality are of the highest importance. It is intended for demanding baristas who refuse to compromise on quality in pursuit of higher productivity.

It is recommended for consumption levels exceeding 10 kg per week.

• The ORHI grinder comes with 800 kg burrs, whereas the IZAGA grinder includes 1,500 kg burrs as standard.

• The ORHI grinder has a simplified “B” version that does not include automatic portafilter detection.

• The IZAGA grinder features a bidirectional grind point locking system, which the ORHI model does not have.

• The IZAGA grinder has thermal separation between the grinding chamber and motor, plus a fan that extracts heat to keep the grinding chamber at a low temperature. The ORHI model only has • thermal separation without a fan.

The IZAGA grinder can be equipped with a STEPlESS grind adjustment system, allowing precise control over extraction time. The design and materials used in the IZAGA grinder are different from those of the ORHI model.

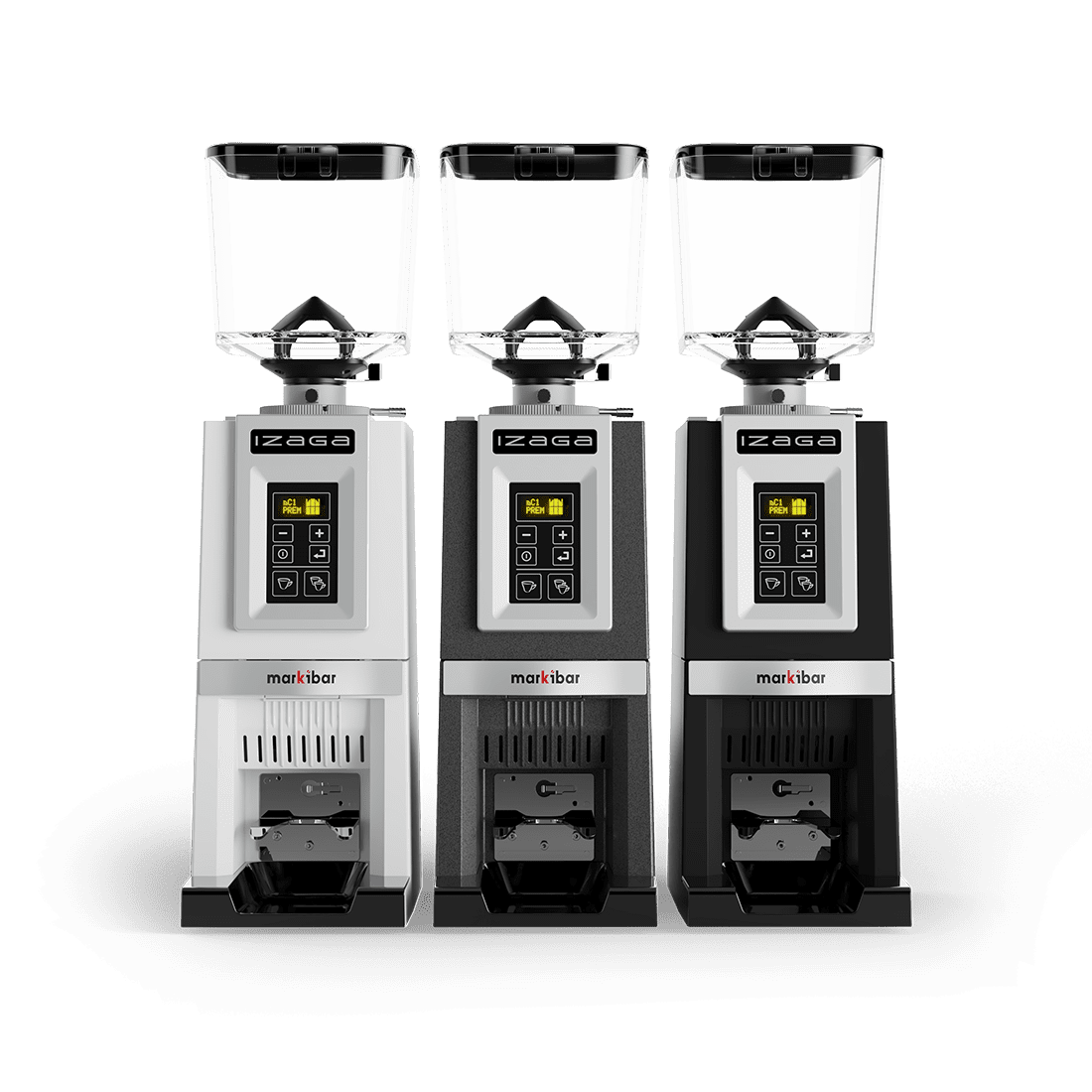

There are three versions available:
• Gray: Gray front panel and black body
• Full-Black: Black front panel and black body
• White: White front panel and white body

For bulk orders, the hopper can be customized with the client’s branding at a very attractive price.

There is also the option to install a Stepless adjustment system. This system allows for continuous grind adjustment, providing more precise control over the grind and extraction time.

Additionally, various types of portafilter holders (Standard, Universal, La Marzocco, etc.) can be supplied for those who prefer to leave the portafilter in the grinder when working On Demand.

The IZAGA grinder comes standard with burrs rated for 1,500 kg of coffee. Additionally, HQ Long Life burrs, also rated for 1,500 kg, can be installed as an option. For extended durability, the new TDC Extreme-Duration burrs, capable of processing up to 5,000 kg of coffee, are also available. These options allow businesses to tailor the grinder’s performance to their specific needs, ensuring optimal efficiency and longevity.
